Tables with reciprocating movement - V2

The assembly tables with reciprocating movement rotate on the horizontal plane. They are used to equip semi-automatic or automatic loading stations. Incorporated fine pitch stop screws made of hardenedsteel guarantee absolute precision.

The shaft is mounted on preloaded ball-bearings. Its reciprocating rotation is pneumatically controlled by a rack and pinion mechanism. A hydraulic shock absorber incorporated into the rack neutralises jarring at the end of the rotation. The rotation speeds are adjusted independently by flow regulators mounted directly on the unit.


Two dimensions are available: TPA66 and TPA100

Rotary tables TPA66

  • TPA66: reciprocating movement, 2 positions
  • TPA663: reciprocating movement, 3 positions with intermediate stop


Rotary tables TPA100

  • TPA100: reciprocating movement, 2 positions
  • TPA103: reciprocating movement, 3 posititons with intermediate stop


Technical data

  TPA66 and TPA663 TPA100 and TPA103
Angle of rotation 180° 180°
Angular accuracy 15'' 20''
Angular accuracy int. Stop 5' 5'
Flatness of rotation 0,01 mm 0,01 mm
Load moment of inertia 0,008 kg·m2 0,08 kg·m2
Torque 0,6 and 1,2 N·m 2 and 4 N·m
Static load 150 N 400 N
Working pressure 3 - 6 bar 3 - 6 bar
Net weight from 1,1 to 1,8 kg from 3,3 to 4,2 kg

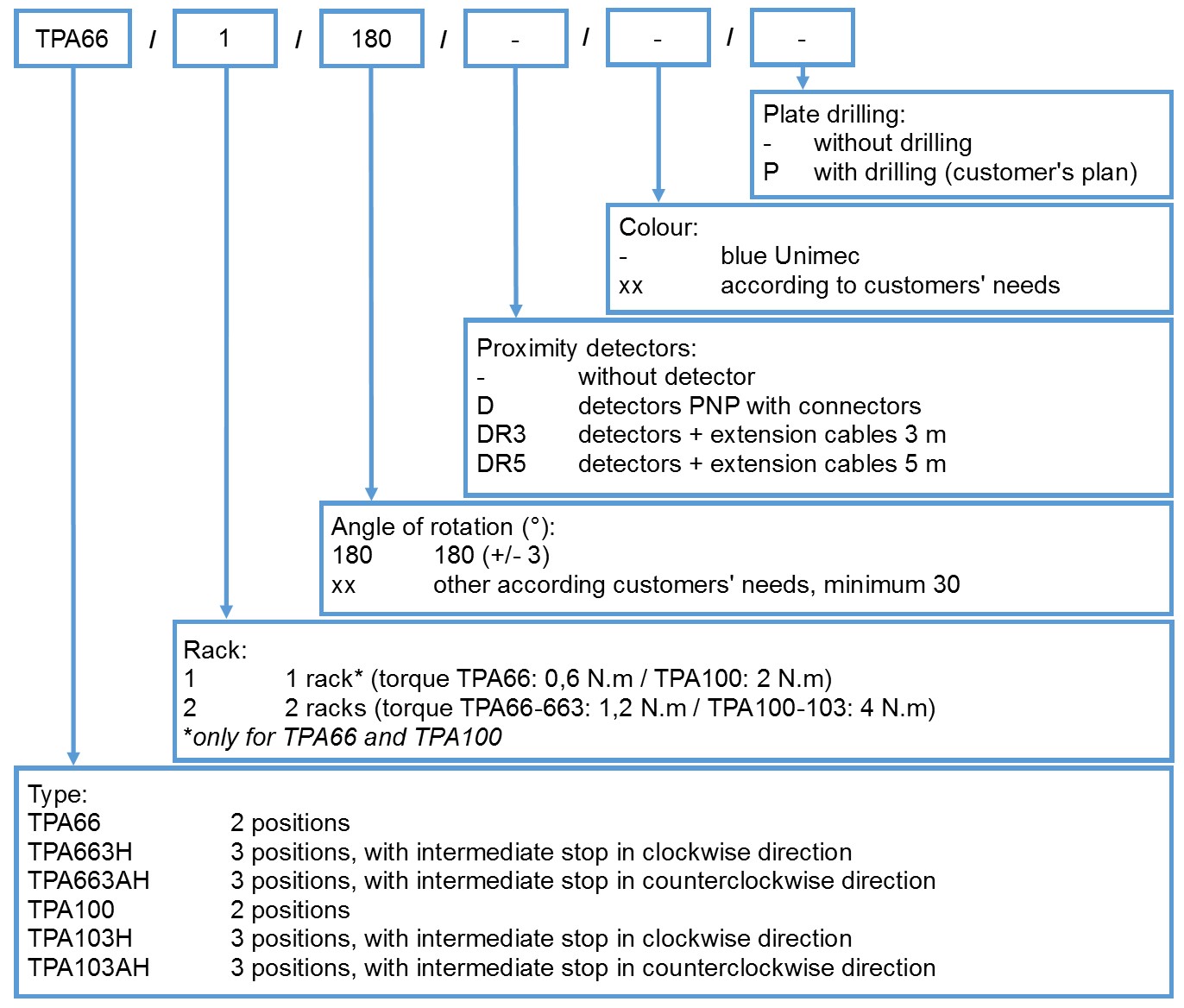

Ordering example
