Microtechnical assembly

The equipment



This fully automatic equipment for assembling two components, it combines proven solutions from the UNIMEC range, including a robot, feeder systems, linear motors, a servo-press, vacuum/blow technology and machine vision.

We offer solutions for assembling watch components, such as:

  • Pinions, wheels, jewels, pins and screw bases
  • Fitting of bridges
  • Crimping
  • Assembly of watch mobiles
  • Miscellaneous assembly



It is ideal for assembling small, medium and large production runs.

Features

Quality automation and controlled, repetitive processes :

  • Bulk loading of components
  • Vision-based location, orientation and sorting of components
  • Component transfer via 4-axis robots (BE66)

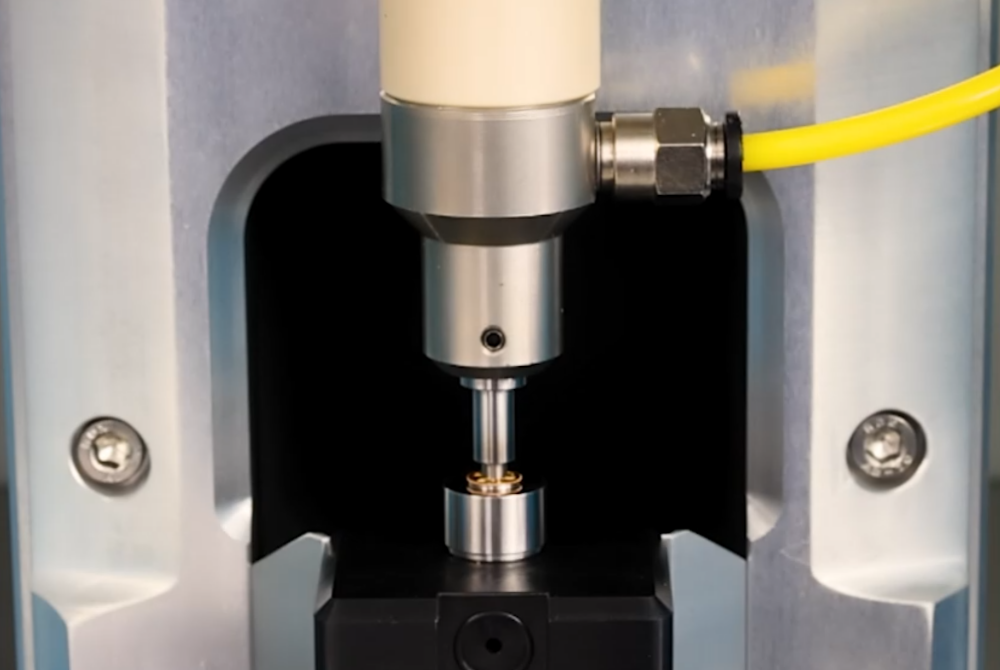

  • Assembly using a servo press (controlled by force and position) or a pneumatic press
  • Packaging of assemblies in bulk or individually
  • User-friendly human-machine interface
  • Production monitoring export via the IT network

Technical data

Cycle time min. 3 seconds
Force range 0 - 5000 N
Positioning repeatability < 0,01 mm
Accuracy of measurement < 1%
Spindle stroke 80 mm
Energy 230V / 5 bars
Dimensions (W x D x H) 1'100 X 800 X 1'850
