UNIDRIVE 4805-010 and 4805-010M

Compact and powerful, the servo-controllers UNIDRIVE 4805-010 and 4805-010M allow the control of medium power motors such as servo-motors, steppers, DC motors and linear motors.

Multifunctional, they can be extended to the devices for a complete motorisation management. They include in particular different types of encoders and sensors to ensure high performance control of the system.

Perfectly intergrated into the UNIMEC SA product range, the UNIDRIVE 4805-010 and 4805-010M are the most suitable tools for the control of our products such as :

  • TE66
  • AML68
  • UNIMEC servo press

Technical data

Status indicator LED
Type of motor servo-motors / stepper / DC motors / linear motors
Digital input and output (customisable) 7x24 VDC Inputs / Outputs
Digital input 6x24 VDC Inputs
Digital output 4x24 VDC Outputs
Security input 1x24 VCC Input
Firmware update Modbus RS45
Network interface Ethernet Ip, RS485, Ethercat (2024)
Logic feed 24 VDC / 100 mA
Motor supply 24-48 VDC
Encoder Dual TTL / Biss
Nominal current In 100mA
Peak current 4.5A
Dimensions 102 x 143 x 310.4
Weight 0.4 Kg


Option measurement card UNIDRIVE 4805-010M

  • Additional measurement card for connecting force, torque sensors etc.

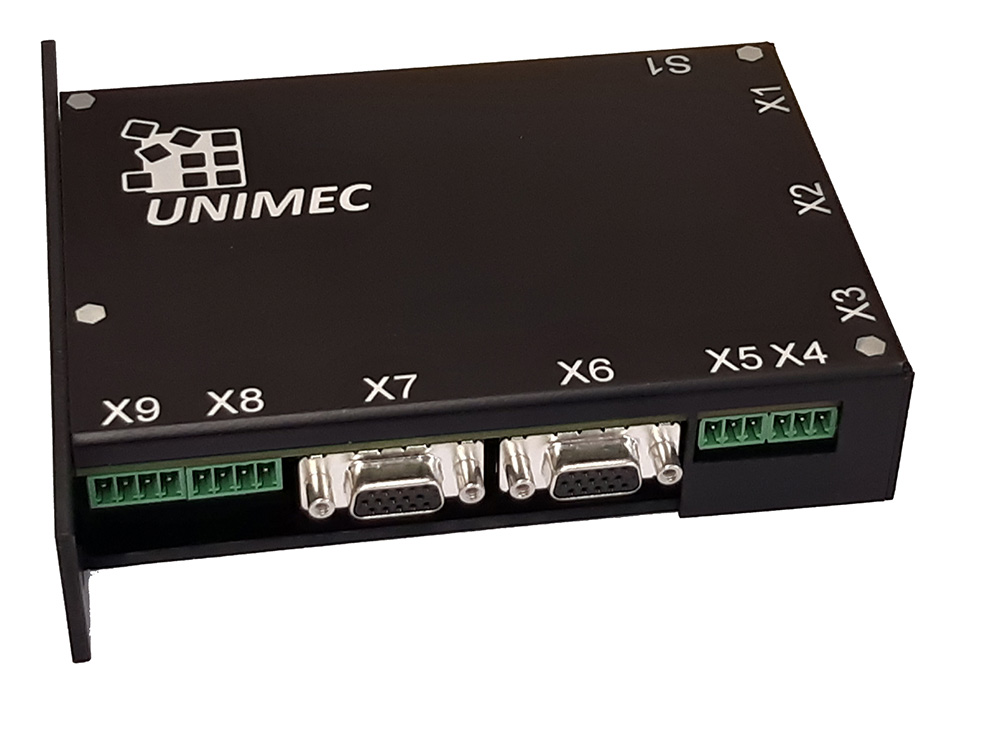

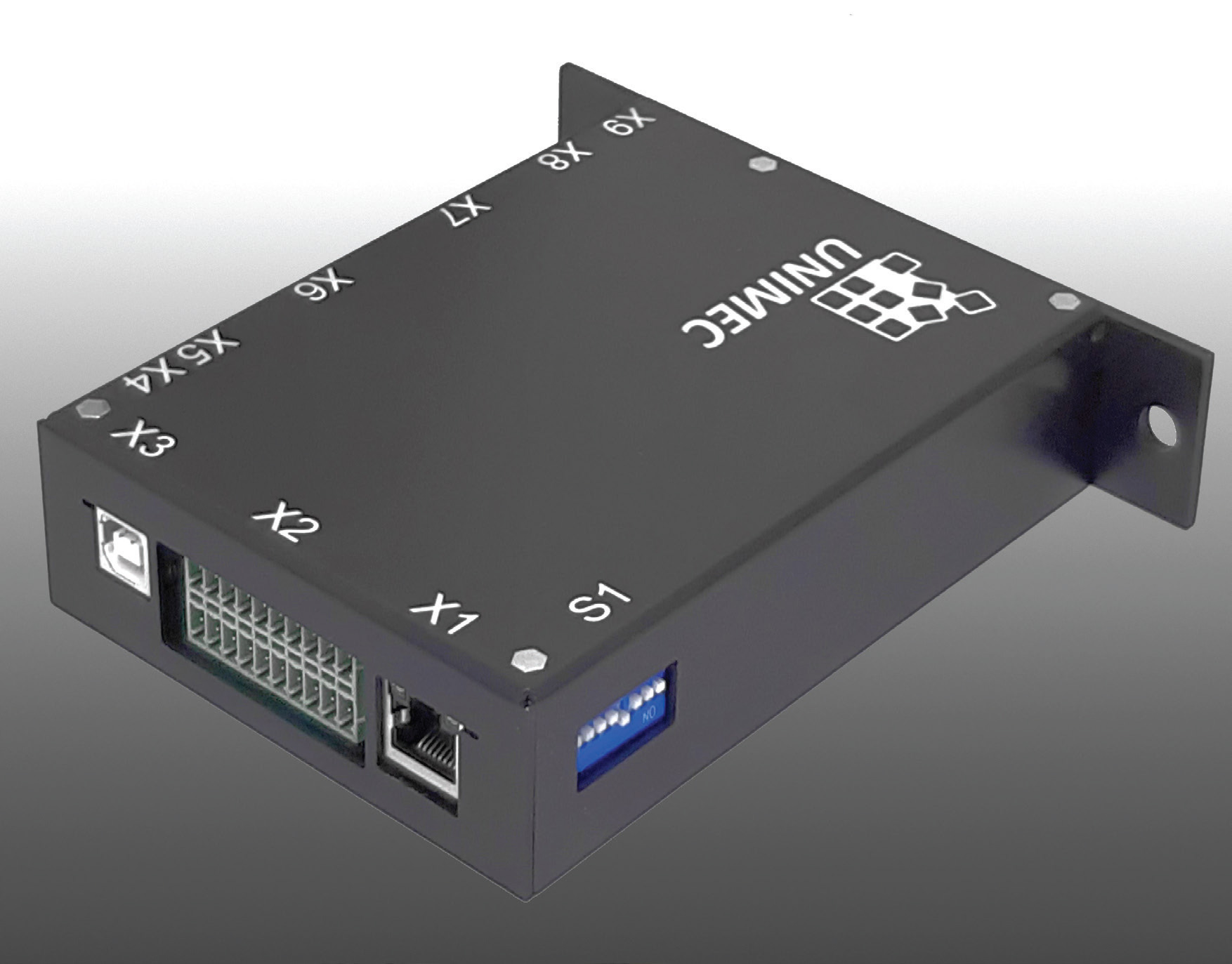

Uni-drive 4805-010
