Feeding module - UNIFEED

Feeding solutions - UniFeed range


The UniFeed range is composed of feeding and sorting automatic units for the flexible and quick distribution of components in bulk.

Various models are available according to the size of components to be fed. Each of these models is combinable with a vision system and/or automation unit (BE66 robot, TE66 table, linear axis AL, etc.).

Advantages:

  • Flexibility of use is guaranteed by a convenient setting of the table vibrations, lighting, hopper control, accessible via a potentiometer or Modbus.
  • Great modularity is enabled by a large choice of options providing a better targeting of the optimal solution, at the best price.
  • Wide range of amplitudes and frequenciesavailable, allowing sorting of all types of components.
  • Backlight in white, red (and additional colours according to customer wish) for optimal detection of components to be sorted.
  • High durability of the device because of a solid construction.
  • Quick start-up of the unit in less than an hour.

UniFeed 812 - Features and options


  • Highly compact unit.
  • Fixation from above or below.
  • Two types of connection possible (connection from below avoids visible wiring).
  • Various hoppers available, easily interchangeable.
  • The vibrating plate is adapted to fed components and easily interchangeable.
  • The detection curtain in hopper end part is allowing the feeding optimisation and quality.
  • Two control modes available.



Technical data


Sorting area 28 x 29 mm
Vibration amplitude from 0.5 to 2.5 mm
Vibration frequency from 30 to 60 Hz
Backlight White, Red (or other according to customer need)
Interface Inputs/Outputs 24V or connection on industrial bus RS485
Voltage 24 V
Weight 750g



 UniFeed 812

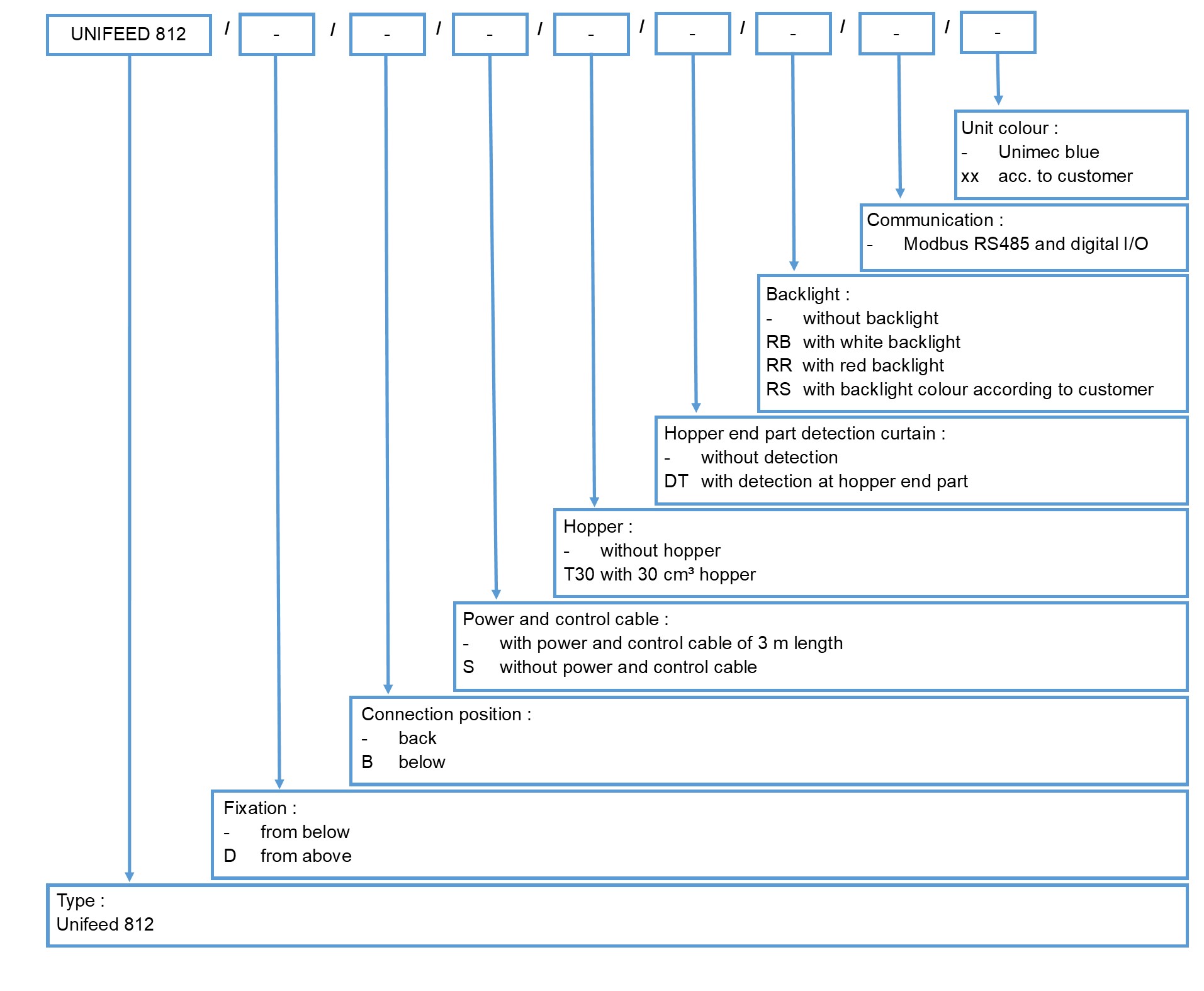

Ordering key UniFeed 812


UniFeed 3400 - Features and options


  • Highly compact unit.
  • Fixation from above or below.
  • Two types of connection, connection from below avoiding visible wiring.
  • Various hoppers available, easily interchangeable.
  • Detection curtain in hopper end part (allowing the feeding optimisation and quality).
  • Vibrating plate is adapted to fed components and easily interchangeable.
  • Automatic purging of vibrating plate.
  • Two control modes available.

Technical data


Sorting area 50 x 68 mm
Vibration amplitude from 0.5 to 6 mm
Vibration frequency from 10 to 60 Hz
Backlight white, red (or else according to customer wish)
Interface Inputs/Outputs 24V, connection on industrial bus RS485 or TCP
Voltage 24 V
Weight 1400g



 UniFeed 3400


Ordering key UniFeed 3400
