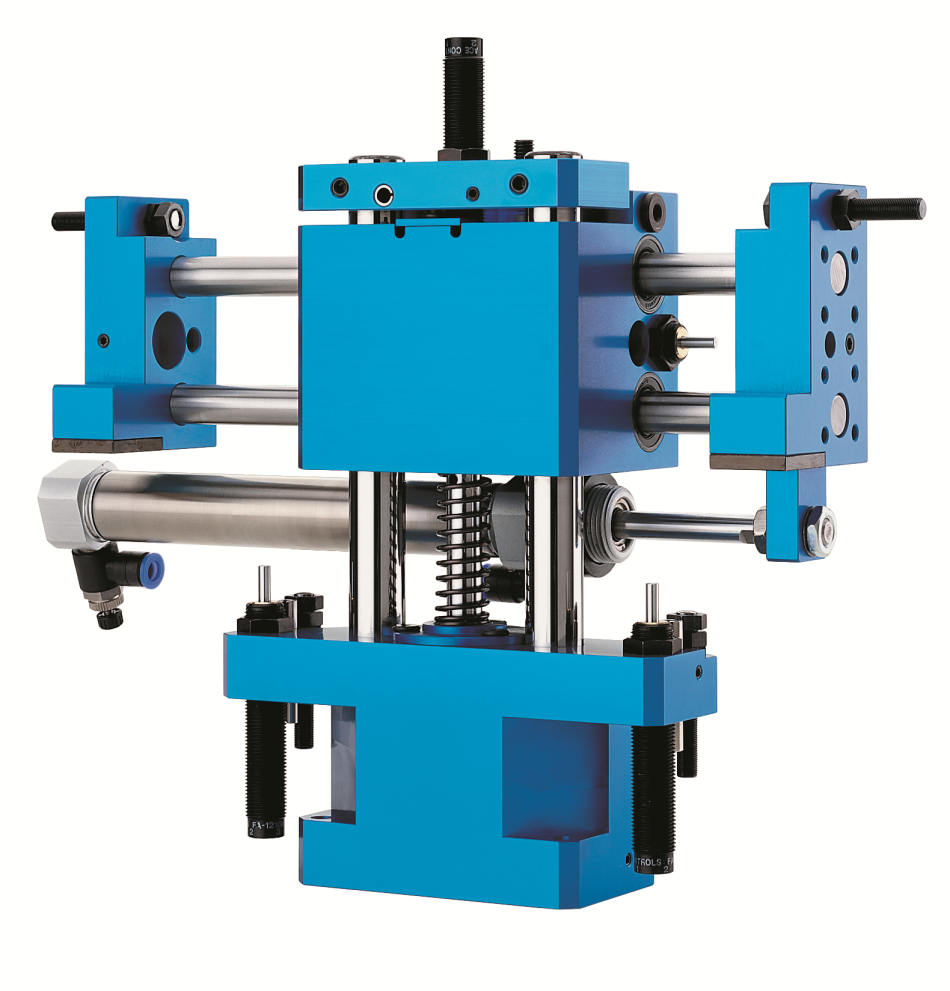

Pneumatic linear transport arms

With their high precision and repeatability, these linear manipulators can be used for numerous applications in the transport and assembly of parts in fields such as electronics, micromechanics, mechanics, watchmaking, spectacles and optical instruments, toys, optics, equipment, and in the areas of conditioning processing and positioning.

Picking up and setting down positions as well as movement speeds are adjustable independently and allow to handle components in tight working spaces. These linear manipulators have hydraulic shock absorbers at the end of the stroke and carbide travel stops.

Our components come with a 12-month guarantee, and we offer an after-sales service that includes overhaul or preventive maintenance of the equipment on our premises.


Technical data

Positioning accuracy 0,01 mm
Transportable mass 0,5 kg
Horizontal force 110 N
Vertical force 165 N
Working pressure 2 - 6 bar
Net weight

3,6 - 3,8 kg

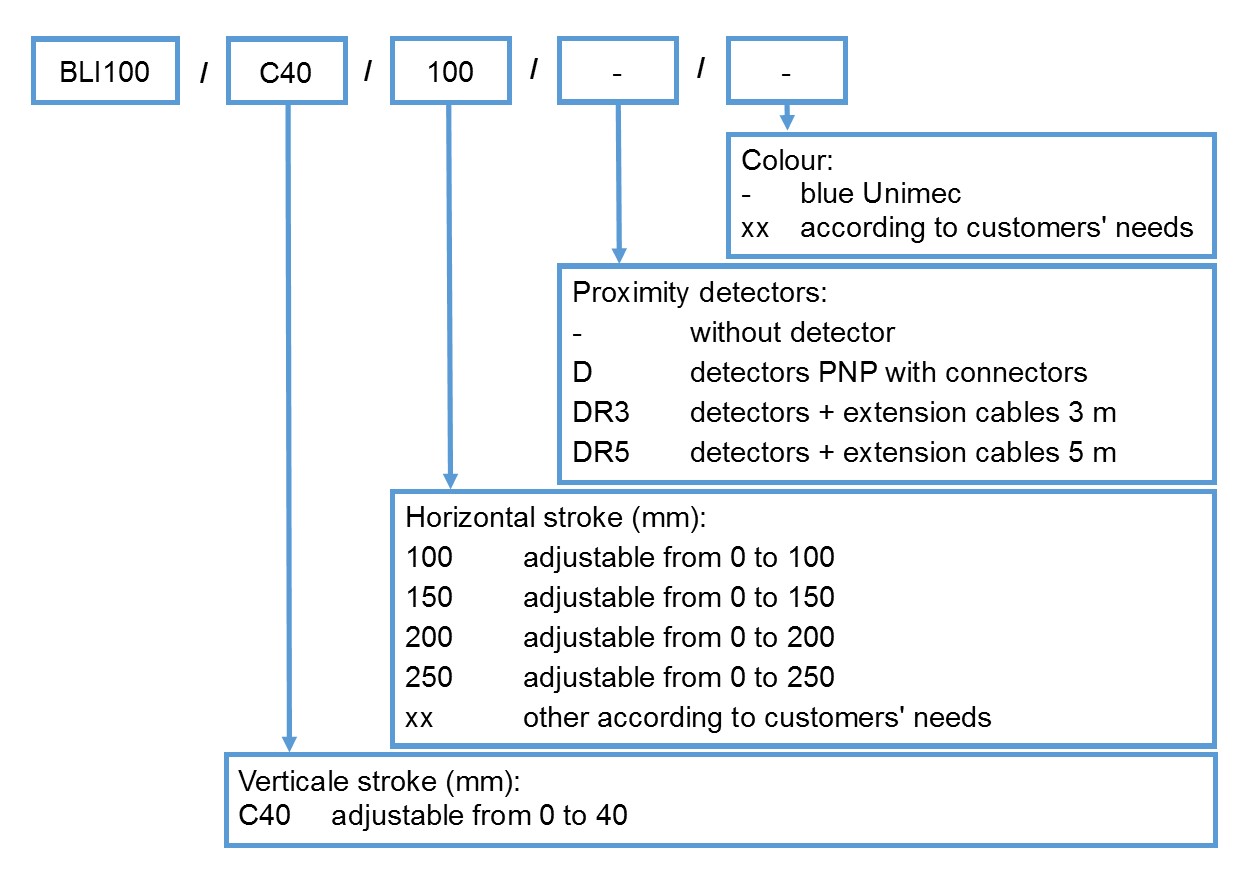

Ordering key BLI100
