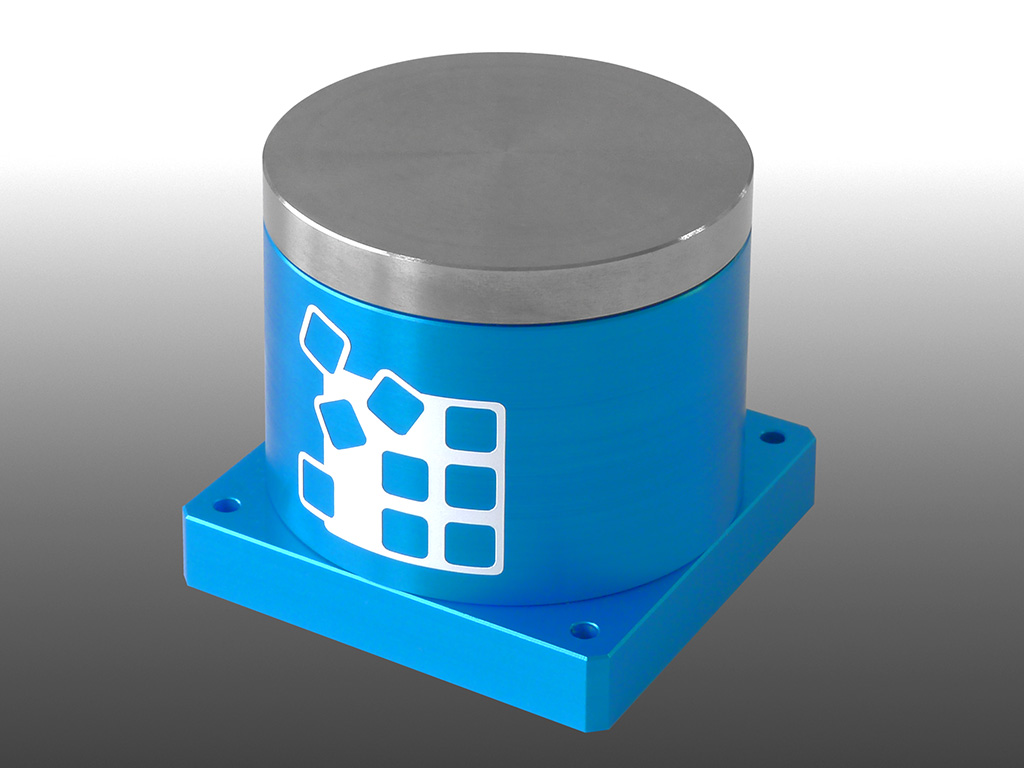

Electrical rotary tables - V2

Unimec SA conceived these electric rotating tables for an integration in automatic rotating machines, for transport and assembly where precision and dynamism are asked.



Advantages :

  • Compact design
  • Precision
  • Speed
  • High load



Technical data




TE66

TE66/H
Dimensions Ø62 x 59 mm Ø62 x 63 mm
Rotation flatness 15 µm 15 µm
Repeatability ± 5 arcsec ± 5 arcsec
Precision ± 70 arcsec ± 70 arcsec
Speed 300 rpm 300 rpm
Nominal rotation torque 0,2 Nm 0,2 Nm
Peak rotation torque 0,55 Nm 0,55 Nm
Maximum axial force 120 N 5000 N
Interface Digital I/O, Modbus RS485, Ethernet Digital I/O, Modbus RS485, Ethernet
Weight 0,6 kg 0,6 kg



Order example
