Dial feet welding

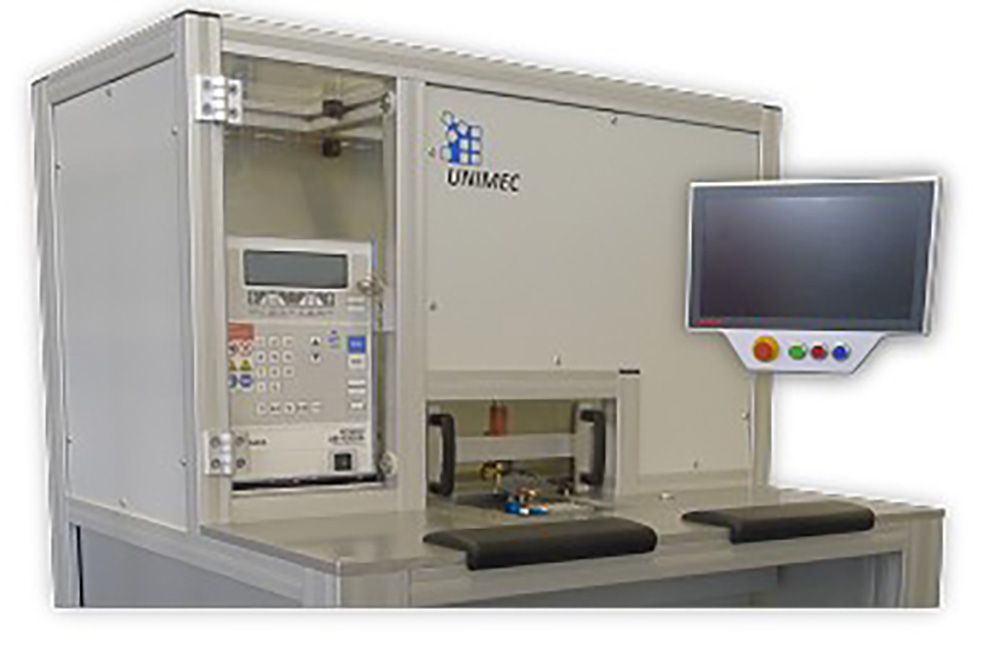

Semi and full-automatic welding machine for dial feet



This semi-automatic equipment is dedicated to welding of dial feet.


Three variants are available:

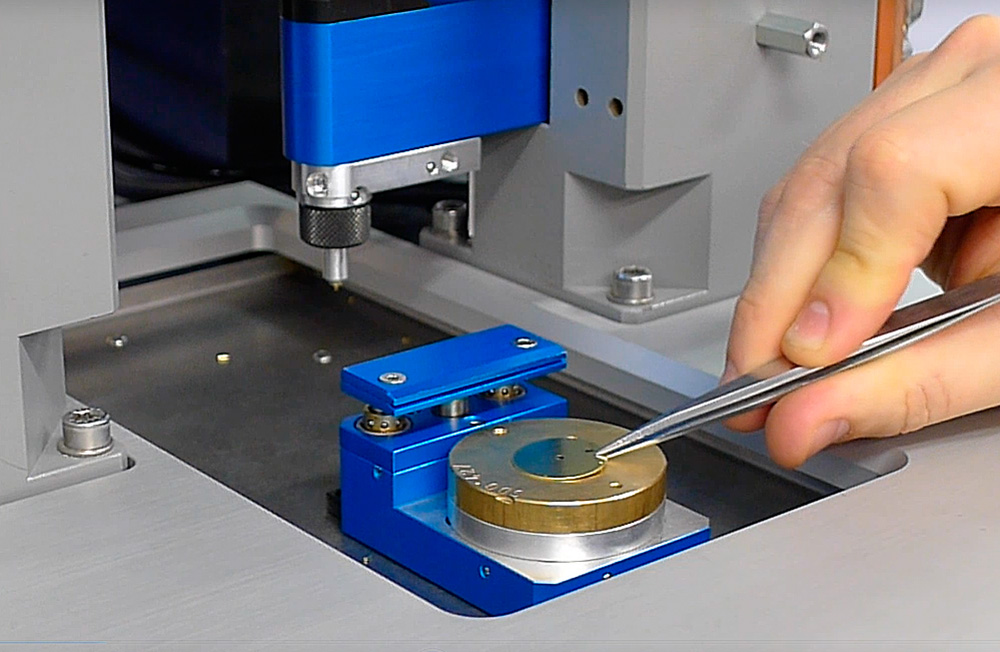

  • semi-automatic: the feet are fed automatically and the dial is loaded manually
  • tape welding: the dial feet are fed automatically
  • full-automatic: the feet and dials are fed  automatically and the finished dials are stored on trays

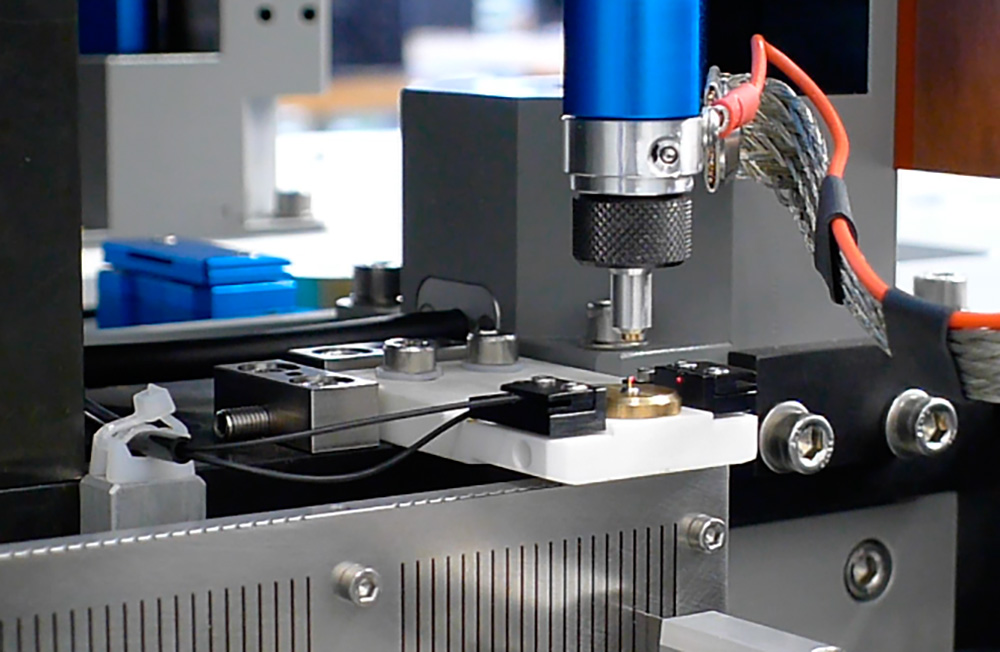

This machine uses resistance welding technology.

A configurable servo press enables the user to optimally control the pressure of feet on the dial.

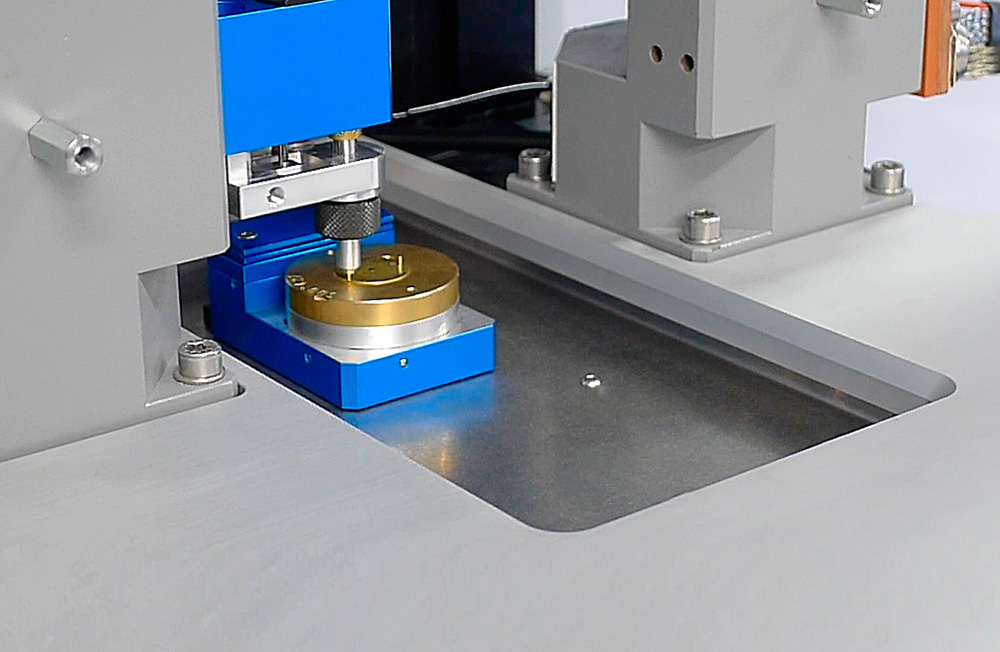

Positioning of feet is made thanks to a motorised cross table, which allows welding on every dial references with high precision.

Equipment is run and controlled via a HMI especially developed for this application. Welding profile is fully programmable: time, limit, double pulse, pressure force.

Voltage measure during welding enables to detect welding defects and to prevent electrode damages or flashs.

A device enables to disable the automatic supply of foot. This way it is possible to load them manually in order to make welding on prototypes or small-volume production.

Technical data

Peak 4 kA / 10 V / 25 kW
Welding programming power / volt / intensity
Pressure force from 0 to 50 N
Energy 230 V / 5 bars
Weight 340 kg
Dimensions (l x w x h) 1'605 x 815 x 1'850 mm
